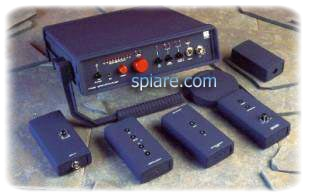

PLM-MDS4001 SISTEMA PORTATILE PER LA BONIFICA ELETTRONICA

PLM-MDS4001 è un' apparecchiatura completa e professionale per eseguire operazioni di bonifica elettronica. Il sistema è stato progettato per rilevare non solo i dispositivi di trasmissione che utilizzano le emissioni RF, ma anche una vasta gamma di altre tecniche ed apparecchiature che possono minare la sicurezza delle comunicazioni.
PLM-MDS4001 è un sistema modulare, composto da un’unità centrale alla quale sono collegabili delle sonde che permettono di compiere diverse funzioni:

• RILEVAZIONE DI EMISSIONI RF
• RILEVAZIONE DI TRASMETTITORI TELEFONICI
• RILEVAZIONE DI MAINS CARRIER
• RILEVAZIONE DI VIDEOCAMERE OCCULTATE
• RILEVAZIONE DI TRASMETTITORI A RAGGI INFRAROSSI E LASER
• RILEVATORE DI MICROFONI NASCOSTI
• ANALISI DELLA LINEA TELEFONICA

FREQUENCY RANGE: 130 KHz - 5 GHz
POWER SUPPLY: Internal 12V battery pack Battery charged via mains charger

MAIN UNIT

FREQUENCY RANGE: 130KHz- 5GHz
RF RECEIVER TYPE: Single conversation super heterodyne, harmonics local oscillator
DYNAMIC RANGE:Typically greater than 80dB
DEMODULATORS:AM, WFM, NFM, FM
ATTENUATORS:0, -30dB at active whip
SENSITIVITY: -60dBm
TUNING METHODS:
Manual tuning
Automatic, to strongest signal

TONE FREQUENCY:1KHz
CONTROLS:
On/off switch
Locate/verify mode switch
Automatic/manual mode switch
Tone on/off switch
Manual tuning knob
Volume control knob

INDICATORS:
Power on
Signal strength level
Manual tuning
Tone on
Mode status: locate, verify, manual or automatic
Probe connection

INPUTS: RF:BNC, 50ohm
PROBES: 3-pin
AC: 3-pin mains socket

DC: 2.1mm 12VDC socket

OUTPUT:
3.5mm stereo headphone socket
Internal speaker (audio): 8ohm, 300mW
Internal speaker (tone):8ohm, 400mW
AC POWER SUPPLY: 110, 220 or 240VAC
DC POWER SUPPLY:
12VDC external
12VDC internal rechargeable battery

INTERNAL BATTERY:
Constant current charging
6 hours operating time typically
8-10 hours recharging time typically

ACCESSORIES:
Carrying case
Mains lead
Headphones
Test transmitter

MAIN UNIT SIZE: 250 x 240 x 65mm
FULL SYSTEM WEIGHT: 8kg

RF PROBE

POWER: Supplied by main unit
FREQUENCY RESPONSE: 10MHz – 5GHz
ANTENNA: 6-segment whip
TYPE: Active
CONTROLS: Sensitivity knob
OUTPUT: BNC, 50ohm (1.5metre lead connection to main unit)
SIZE: 120 x 60 x 30mm

CAMERA/MAINS CARRIER PROBE

POWER: Supplied by main unit
FREQUENCY RANGE:10KHz – 130KHz and 50KHz – 700KHz
ANTENNA: Permanently attached VLF loop

CONTROLS:
Camera detection selection switch
Mains carrier detection selection switch
Tuning knob

INDICATORS:
Camera selection
Mains carrier selection

OUTPUT: 3-pin
SIZE: 120 x 60 x 30mm

MICROPHONE PROBE:

POWER: Supplied by main unit

CONTROLS:
Normal/reverse microphone polarity selection switch
Line on/off selection switch

INDICATORS:
Normal microphone polarity selection
Reverse microphone polarity selection
Line on selection
Line off selection

OUTPUT: 3-pin
SIZE: 120 x 60 x 30mm

TELEPHONE ANALYSER PROBE

POWER: Supplied by main unit
CONTROLS: RF /telephone line audio selection switch

INDICATORS:
RF selection
Audio selection
Telephone socket (via telephone lead to telephone line)
3-pin / BNC
SIZE: 120 x 60 x 30mm

LASER/INFRA-RED PROBE

POWER: Supplied by main unit

FIELD OF VIEW: 40 degrees
IR WAVELENGTH BANDPASSED: 725 – 1150nm
HALF-POWER ANGULAR RESPONSE: 48 degrees
SPECTRAL PEAK: 940nm (infra-red)
OUTPUT: 3-pin
SIZE: 90 x 50 x 30mm

Prezzo al pubblico € 8.950.00 (iva inclusa)
